Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: suntree
  • Model Number: LA1-DN11
  • Electricity Type: AC
  • Number of Pole: 3
  • Phase: 3
  • Main Circuit Rating Voltage: 380v
  • Main Circuit Rating Current: Other

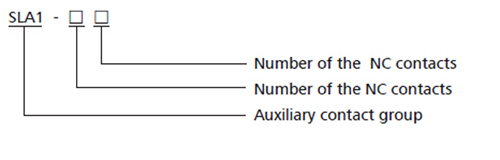

Type and meaning

Application

SLA1-D series Auxiliary contact blocks are installed on the top of CA2-D control relay of LC1-D AC contactor for expanding the couples of auxiliary contacta points. Owing to adopting the contacting the contacting function of sliding of sliding frictions,the iten can be self-cleaning and ensure the electric circuits to be reliable.

Specification

Type

SLA1-DN02

SLA1-DN11

SLA1-DN20

SLA1-DN22

SLA1-DN40

SLA1-DN04

SLA1-DN13

SLA1-DN31

Contact numeber

2NC

NO+NC

2NO

2NO+2NC

4NO

4NC

1NO+3NC

3NO+1NC
