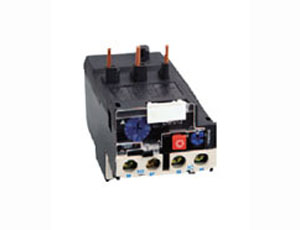

SLR2 Series thermal overload relay

Quick Details



  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: suntree/OEM
  • Model Number: LR2-D33
  • Theory: Thermal Relay
  • Usage: Protective
  • Size: Miniature
  • Protect Feature: Sealed
  • Contact Load: Low Power
  • rated insulation voltage: 660V
  • rated current: 12.5A-630A
  • type: 3UA/LR1/LR2/T/JR20/JR36
  • STANDARD: IEC60947-4
  • Price: Competitive
  • quality: Stable and reliable
  • class: A,B
  • Certification: CE,ISO9001
  • PHASE: 3
  • PROTECT FEATURE: SEALED





Application



SLR2 series thermal overload relay are suitable for overload and
phase-failure protection of AC motors with frequency of 50/60Hz,
voltage up to 690V, current up to 0.1-150A under 8-hours duty or
uninterrupted duty.
Functions provided by these relays, are phase-failure protection,
temperature compensation, ON/OFF indication, Stop button ,Test
button and manual/automatic reset.
Applicable Standards:National Standard:GB14048. International
Standards:IEC609474-1 The relays can be mounted onto contactors
or installed as single units.

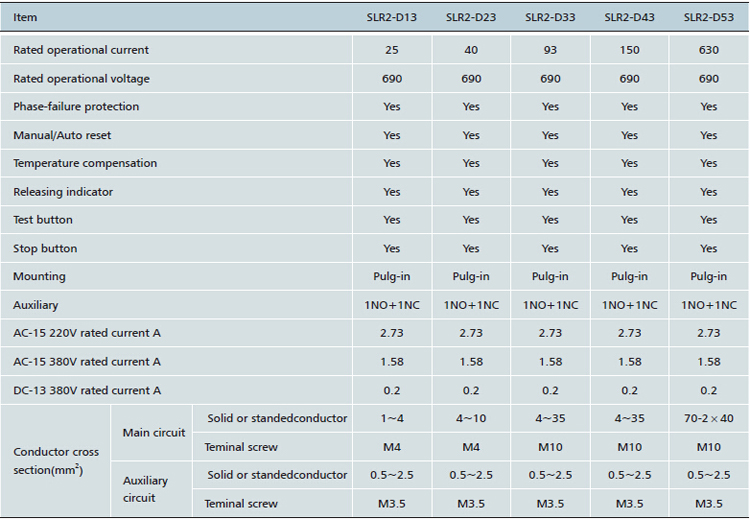

Technical data

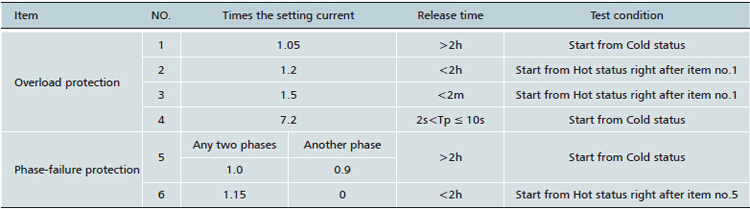

Protection characteristics
