•HEAT DISSIPATION HOLE
Quickly dissipate heat, reduce the service temperature
•PLUG-IN CLIPS
Easy module replacement
•FLASH BARRIER
Prevent arc propagation in current impact
•HIGH RELIABILITY
Single chip voltage up to 400V
| S | UP | 2 | H | PV | M | X |
|---|---|---|---|---|---|---|
| Enterprise code | Surge protector device | Design Number | H:275V/500VDC H1:1000VDC H6:600VDC H8:800VDC |
PV code DC dedicated | Maximum accommodating40kA | Remote sensing |
| Product Model | SUP2H-PV | SUP2H6-PV | SUP2H8-PV | SUP2H1-PV | ||
| Max. continuous operating voltage (Uc) | 275VDC 500VDC | 600VDC | 800VDC | 1000VDC 1200VDC | ||
| Protection level (In)Up | 2.8kV 2.8kV | 2.8kV | 3.0kV | 3.6kV 4.0kV | ||
| Max. discharge current (Imax)(8/20us) | 20/40KA | |||||
| Service temperature | -40℃~+70℃ | |||||
| Relative humidity | ≤95%(25℃) | |||||
| Installation mode | 35mm standard guide rail | |||||
| Window indication | Normal: green; Failure: Red | |||||
| Ingress protection | IP20 | |||||
| Numbers of poles | 1P、2P、3P | |||||
| Leakage 0.75u lmA(uA) | ≤20 | |||||

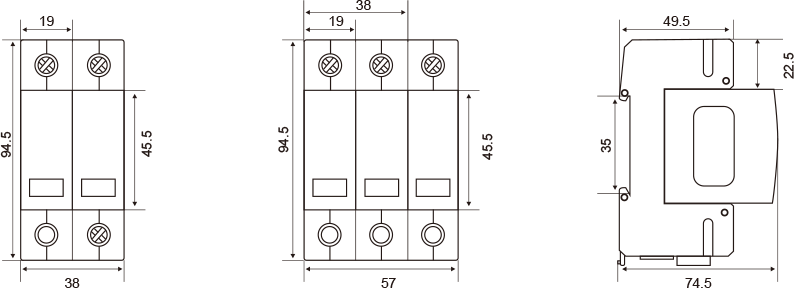

The normal range of ambient air temperature should be no higher than +40°C and no lower than -25°C, with a relative humidity of no more than 95%
The altitude of the installation site shall not exceed 2000m
Pollution class 3

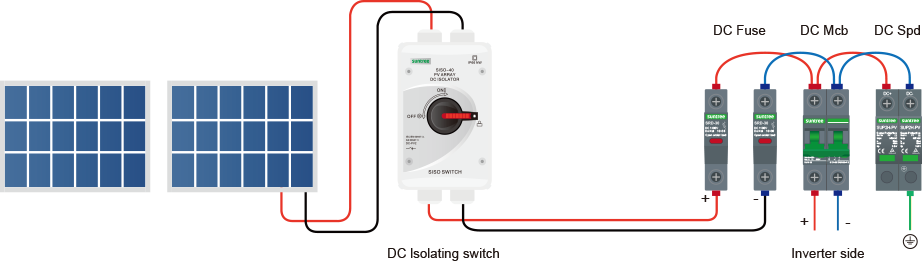

Where there is no risk of explosion and the medium is free of gases and conductive dusts sufficient to corrode metals and destroy insulation.Wiring resistance
Grounded copper bus-bar
