• High reliability
With DC FUSE
With DC Surge Protection Device
With DC circuit breaker or DC load isolation switch.
• Strong adaptability
IP65 design, waterproof, anti dust and anti ultraviolet.
Strict test for high and low temperature, used widely.
The simple installation, the simplified system wiring, the convenient wiring
• Flexible configuration
Used for single crystal silicon solar modules, polycrystalline silicon solar modules, thin film solar modules.
Current rating of the photovoltaic fuse, circuit breaker, load isolation switch is modified.
| SHLX-PV | ||
| System maximum dc voltage | DC 550V | DC 1000V |
| Maximum input current for each string | 15A | |
| Maximum input strings | 1 | |
| Maximum output switch current | 50A/63A | |
| Number of inverter MPPT | 1 | |
| Number of Output strings | 1 | |
| DC SURGE PROTECTOR | ||
| Voltage | Ue=DC1500v Ue=DC1200v Ue=DC 1000V Ue=DC500V and bellow | |
| Maximum instantaneous discharge current | In=20KA/40KA | |
| Pole | 2P 3P | |
| Certification | CE TUV | |

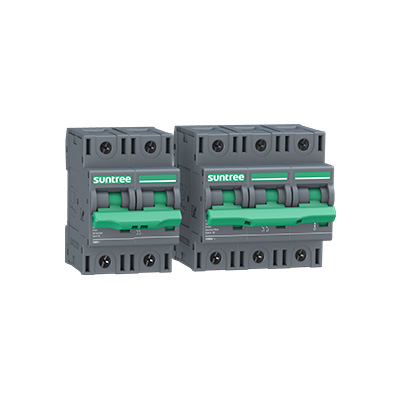

| DC CIRCUIT BREAKER | ||
| Voltage | Ue=DC1200 Ue=DC10000 and blow | |
| Current | In=6A In=10A In=16A In=20A In=25A In=32A In=40A In=50A In=63A | |
| Pole | 1P2P 3P 4P | |
| Auxiliary | Us: DC12V DC24V DC48V AC230V/415V 1A-2A MX+OF | |
| Certification | CE CB TUV SAA | |
| DC FUSE | ||
| Voltage | Ue=DC1100v | |
| Current | In=1A In=3A In=5A In=6A In= 10A In=16A In=20A In=25A In=30A | |
| Specification | 10*38mm | |
| Certification | CB CE TUV | |
