SCJ19 Series switch-over capacitor contactor

Quick Details

• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: SUNTREE
• Model Number: CJ19
• Electricity Type: AC
• Number of Pole: 3
• Phase: 3
• Main Circuit Rating Voltage: 380v
• Main Circuit Rating Current: 200a
• According to customer demand: Early delivery
• Guarantee period: 2year
• Professional manufacture: High quality
• Price: Competitive
• rated current: 25A-125A
• STANDARD: IEC60947
• class: A,B
• rated insulation voltage: 380V
• Shell color: White, black, Gray
• Website: www.chinasuntree.com

Application

SCJ19 switch-over capacitor contactor is the new type of components
for electric appliances, which is developed and produced on the basis
of the same kind. The device is widely applied to the low voltage
reactive power compensation screen to replace the subassembly
composed of three XD1 current-limiting reactors and a SCJ10
contactor, and it is also can be used in the general control circuit to
linit flashy flow.

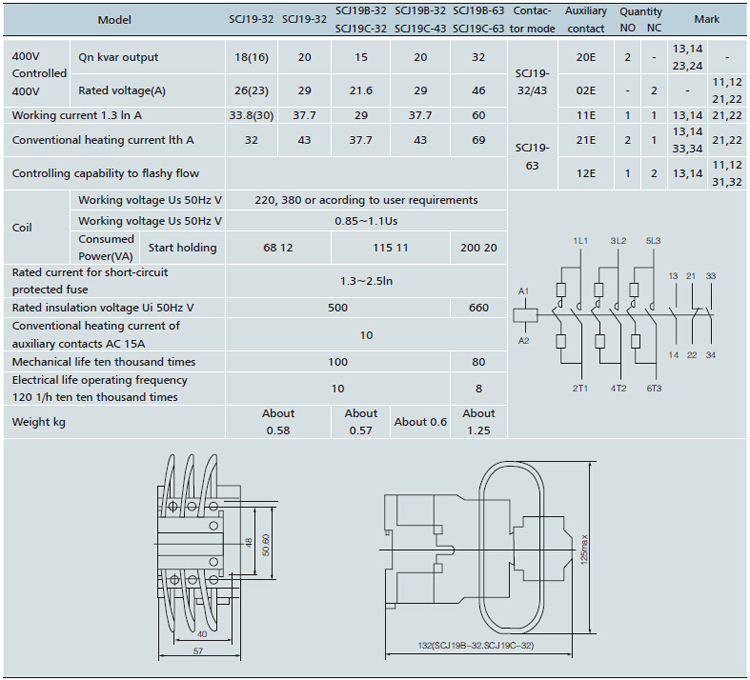

Main technic date / Overall dimension
