LC3 Star-delta reduced voltage starte

Quick Details



  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: suntree
  • Model Number: LC3-D503
  • Electricity Type: AC
  • Number of Pole: 3
  • Phase: 3
  • Main Circuit Rating Voltage: 690v
  • Main Circuit Rating Current: 50A
  • Rated operating current: 50A
  • Voltage: 380/660V
  • Type: LC3-D503
  • Class: A,B
  • Website: www.chinasuntree.com
  • Guarantee period: 2 year
  • Price: Competitive
  • quality: Stable and reliable
  • TECHNOLOGY INNOVATION: FAMOUS IN THE WORLD
  • STANDARD: IEC60947





Application



SLC3 is used as a motor starting device applied to the circuit
current up to 95A 660V voltage AC 50/60Hz. It has timer which can
be Deployed star delta conversion in order to reduce the the voltage
and current of the motor starting.

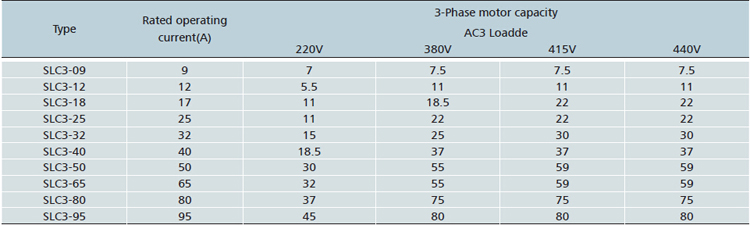

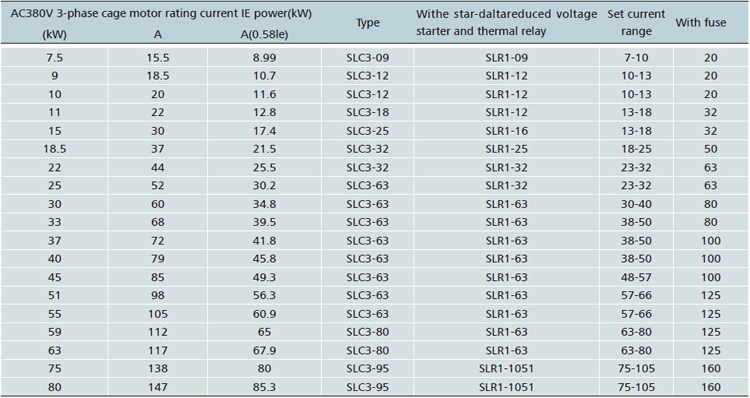

Specifications







Products group
