Main Switch for DIN Rail Mounting

Application



■ DIN roil mounting
■ Extremely short power shut off time of approx. 3ms
■ 2 poles and 4 poles available
■ IEC60947.3 standard
■ DC21 B: 16A, 25A and 32A up to 1500V DC

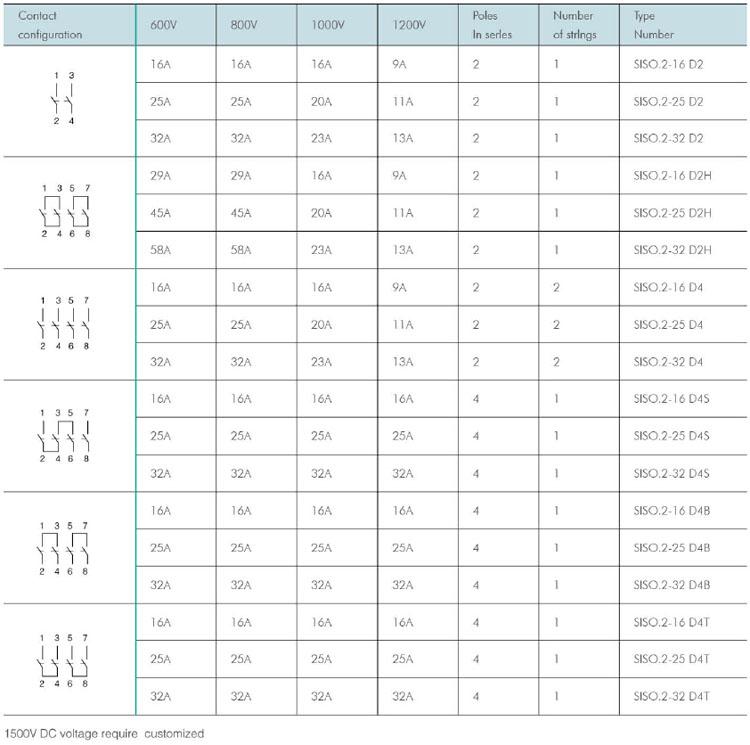

Specifications

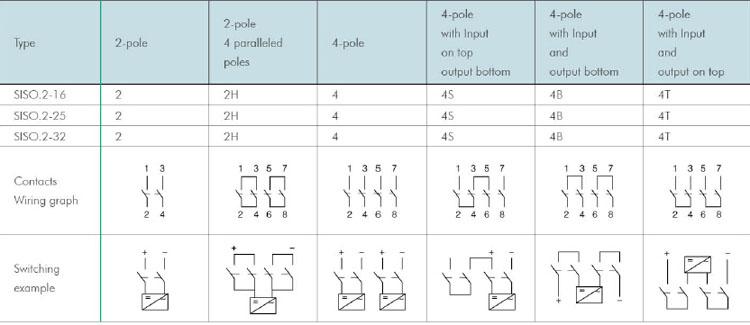

Configulation

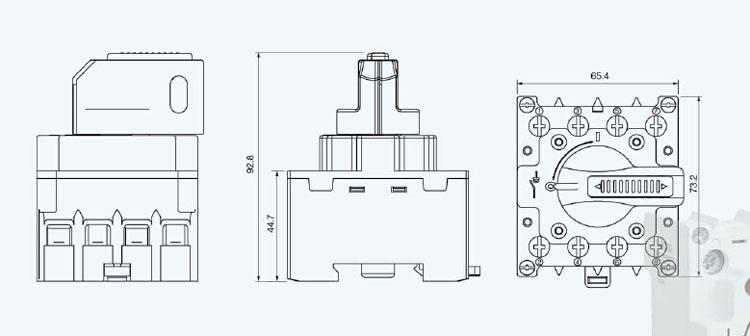

Dimensions(mm)
