SISO-40 DC isolator switch

SISO-40 DC isolator switch

ADVANTAGES

Features



  • UV Resistant IP66 Enclosure
  • Extremely Short Power Shut Off Time Of Approx.2ms
  • Lid Only Removable In "off" Position
  • Earth Terminal
  • 1EC60947-3,AS/NZS60947.3: 2015
  • DC-PV1 DC-PV2 DC-21B
  • 10A To 32A UP To DC1200v
  • Easy To Install



Specifications

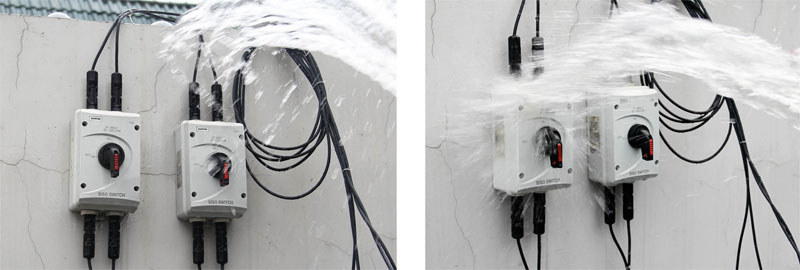

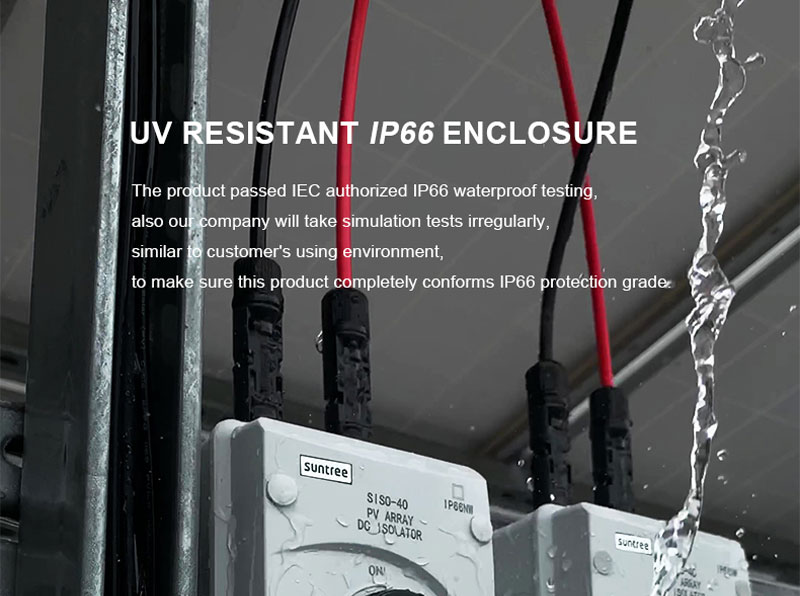

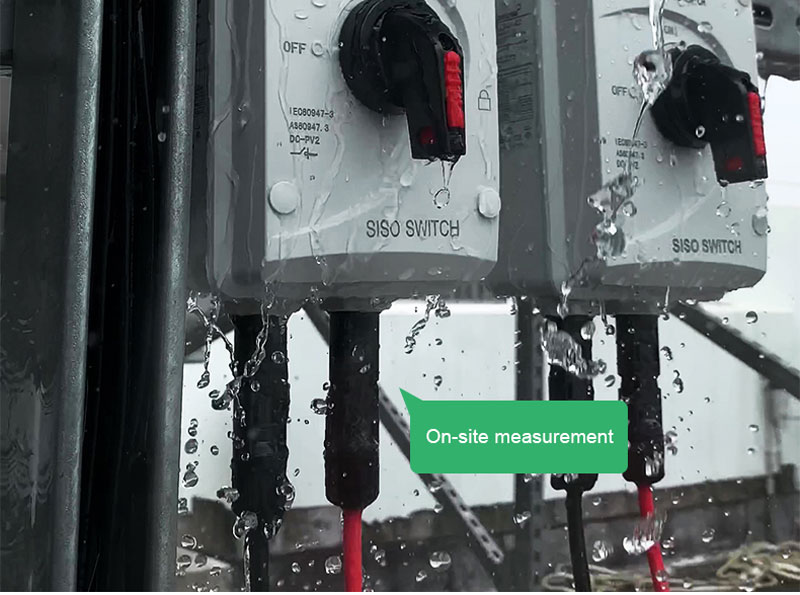

This product passed IEC authorized Lob IP66 waterproof testing. Also our company will lake simulation tests irregularly, similar to customer's using environment, to make sure this product completely conforms to IP66 protection grade

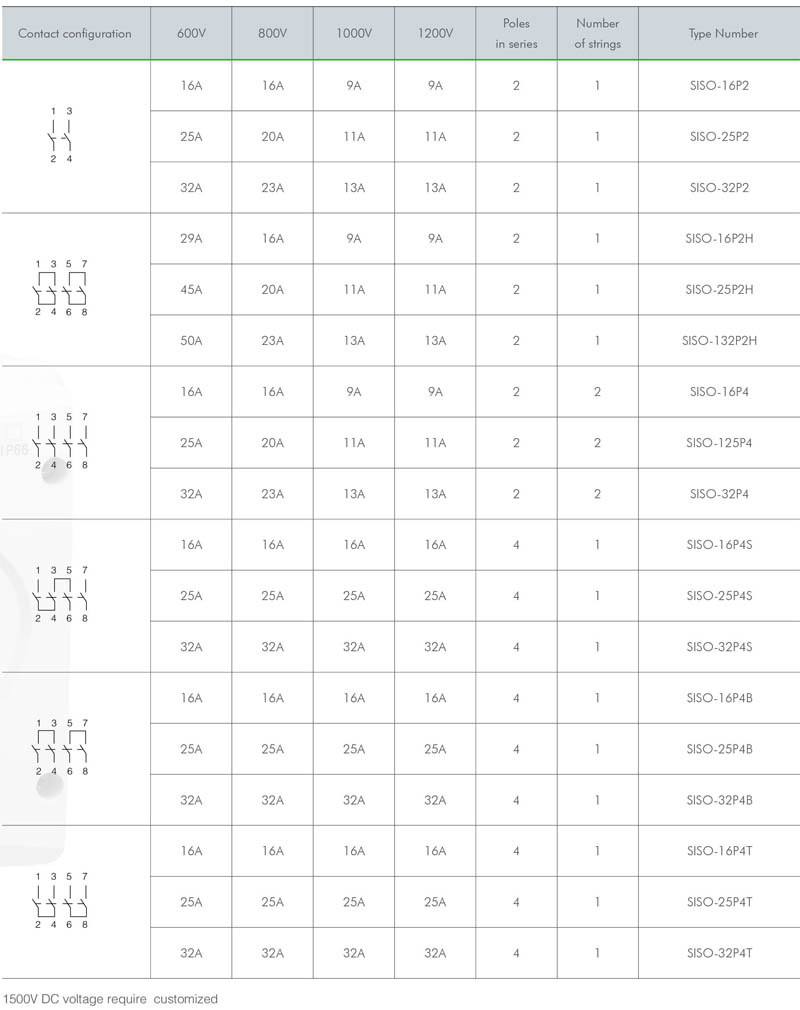

Specifications

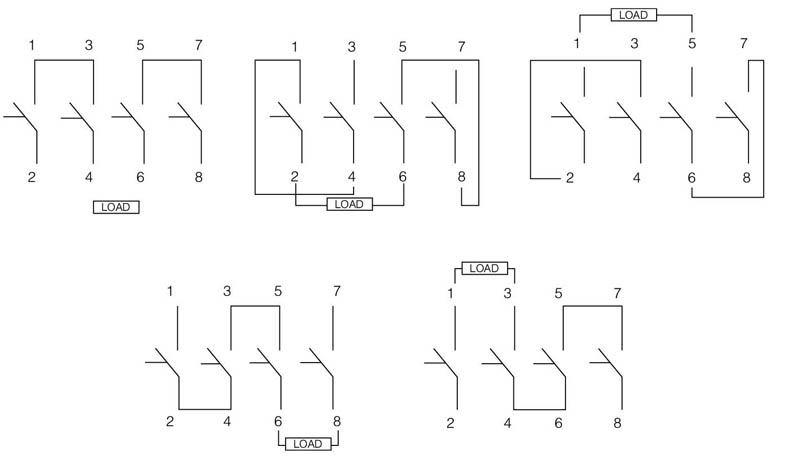

Contact Configulation

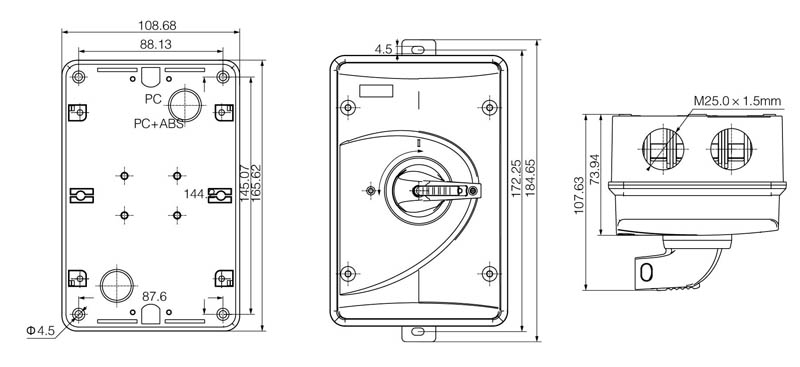

Dimensions(mm)



SISO-40 DC isolator switchSISO-40 DC isolator switch

SISO-40 DC isolator switch

SISO-40 DC isolator switch

SISO-40 DC isolator switchSISO-40 DC isolator switch

SISO-40 DC isolator switch

SISO-40 DC isolator switch

SISO-40 DC isolator switch
