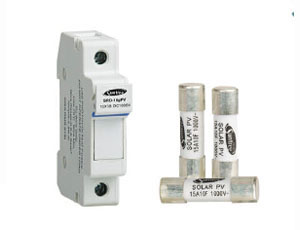

SRD-10g PV 1A-20A Photovoltaic Fuse

ADVANTAGES

Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SUNTREE&OEM
  • Model Number: SRD PV fuse holder 16A
  • Usage: protect
  • Breaking Capacity: High
  • Safety Standards: IEC
  • Type: DC-fuse
  • Rated current: 16A
  • Reted voltage: 1000V
  • Pole: 1P
  • Sample: Ok to provide
  • Certificate: TUV
  • Professional manufacture: 8 Years
  • Size: 10*38mm
  • Standard: IEC60269.-6, GB/T 13539.6
  • where use: PV system

Specifications

1.PV system dc fuse

2.Rared Voltage:1000VDC

3.High quality CE&TUV certificate

4.Professional DC-FUSE Manufacturer

DC Fuse for DC application with a specific version for photovoltaicapplications

DC Fuse Applications

Standard:IEC 60269.6,GB/T 13539.6
Interrupting Capacity
30,000 amperes at 1000V DC (Time Constant: 1-3ms)

Specifical

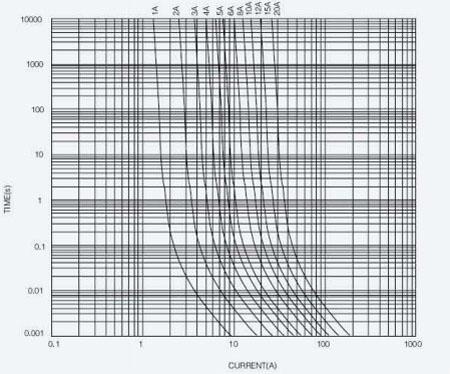

Average I-T Characteristics Curve

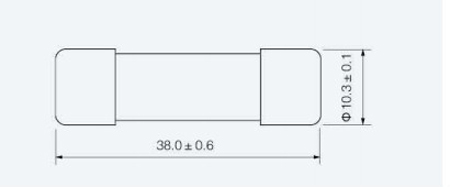

Dimensions

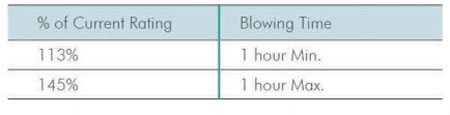

Electrical Characteristics
