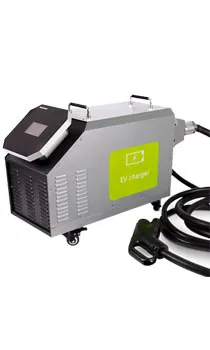

EV 3 IN 1 Movable Rapid Charger

EV 3 IN 1 Movable Rapid Charger

• 7KW / 15KW / 20KW / 30KW / 40KW

• GBT27930 / CHADEMO 2.0 / DIN 70121 / OCPP 1.6J / ISO 15118

• Replaceable socket / replacement charging gun

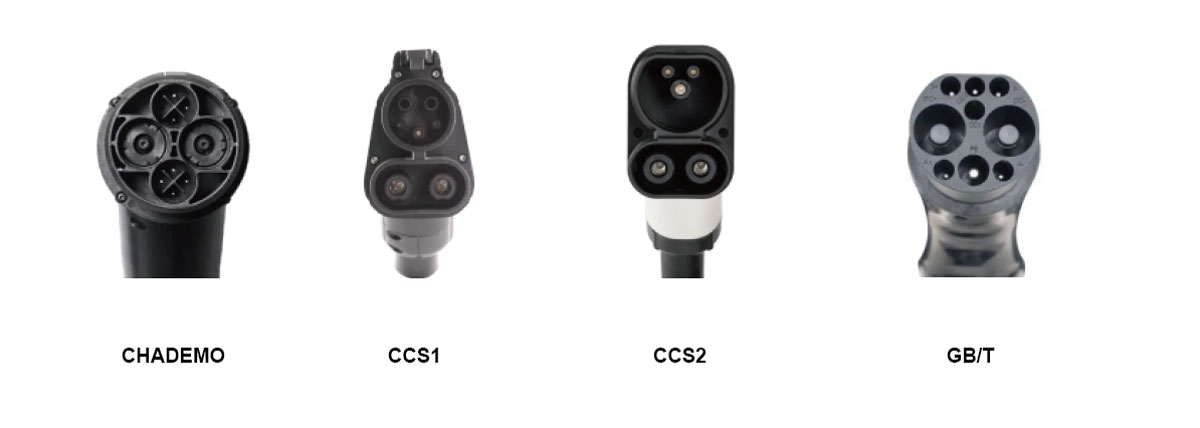

• Realize CCS / CHADEMO / GBT free switching

• The Special Replaceable Socket Can Realize Multi Charging Of One Machine.
   By Replacing The Charging Gun, Can Change Free between ccs/chademo/ gbt,
   realizeone Machine Can charge All over the world.

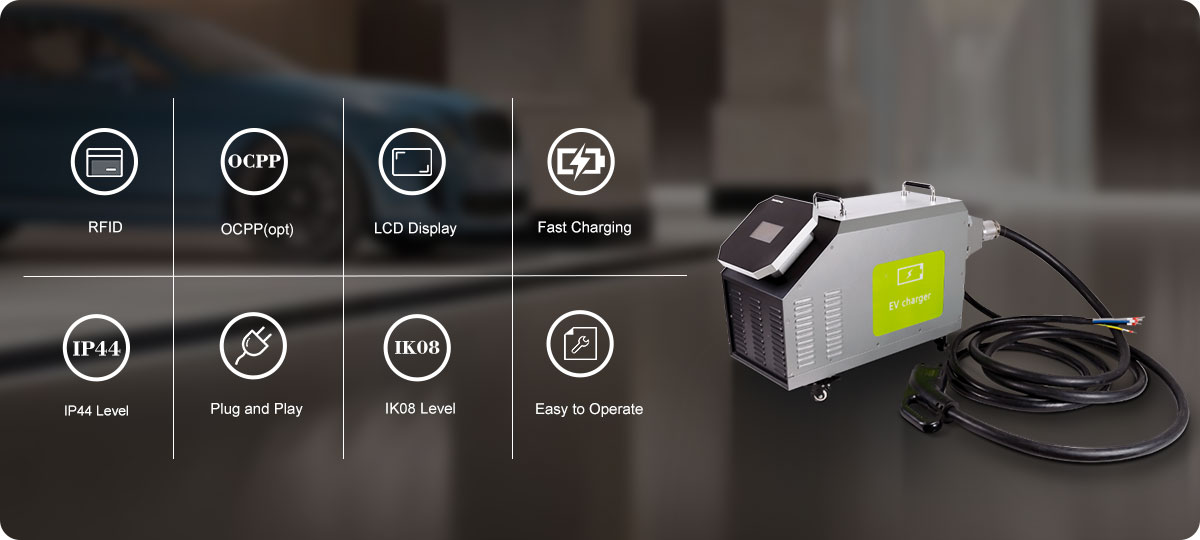

• High Protection L evel lp44, Can Be Used Outdoors Without Fear Of Wind And Rain

• Anti-collision Grade lk8, Not Afraid Of External Force Collision.

• Ce Certification, Safe And Reliable.

• 4.3inch Touchable Screen, Intelligent Human-machine Interface.

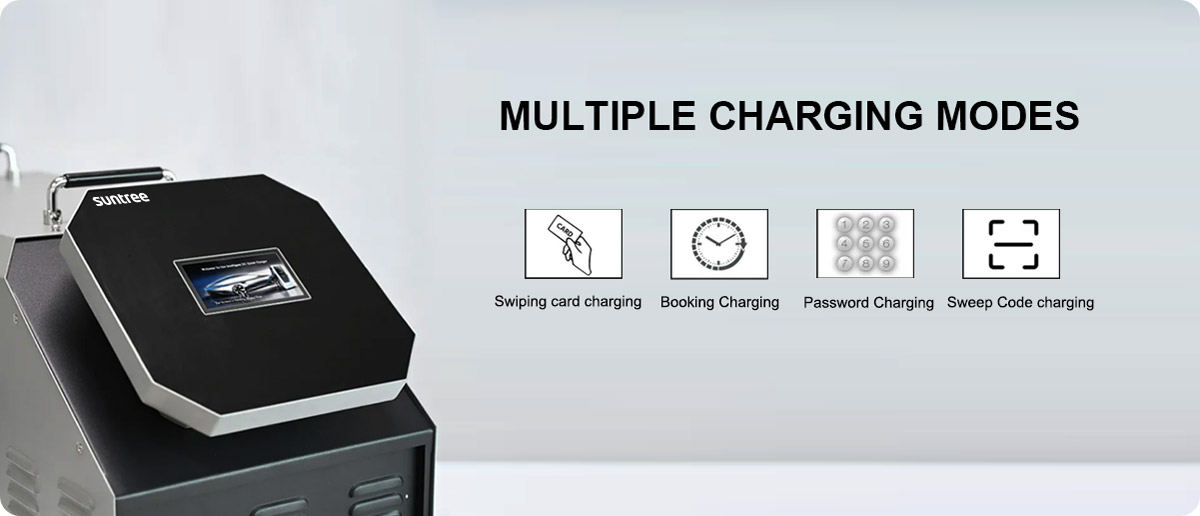

• Can Equip With Ocpp Function, Remote Control, Reservation Charging,
   Payment Charging And More functions etc.

• Multi Network Connection Method: Lan/ wifh/ 4g Module.

DC Charging Gun Applicable standard
GBT20234/EN62196/EN61851-1,JEVSG 105/CHADEMO

ELECTRICAL TECHNICAL REFERENCE

MAIN PARAMETER
Model XC97SADMSW-AEG XC415SADMSW-AEG XC420SADMSW-AEG XC430SADMSW-AEG XC440SADMSW-AEG
Input voltage 90-265V 260-475V
Input Connection L+N+PE 3P+N+PE
Input Current 32A 25A 32A 45A 64A
Frequency 50/60Hz
Power Factor >0.99@FULL LOAD
Efficiency 95%
Output Voltage 200-750V (200-1000V optional)
Output Power 7KW 15KW 20KW 30KW 40KW
Output Current 20A 25A/37A 33A/60A 50A/100A 66A/120A
TFT-LCD Touch Panel 4.3-inch display
Auxiliary source 12V (24V optional)
Dimension(mm) 635×295×500
Weight 20KG 25KG 40KG 50KG 60KG
Operating Temperature -20℃-50℃
Altitude 2000M
IP LEVEL Ip44
ANTI-COL LISION CLASS lk8up
Input line length 3M (CUSTOMIZED ACCEPTABLE)
Gun cable Length 5M (CUSTOMIZED ACCEPTABLE)
Applicable standard GBT20234 / EN62196 / EN61851-1, JEVSG 105 / CHADEMO
Communication protocol GBT27930 / CHADEMO 2.0 / DIN 70121, OCPP 1.6 (JSON), ISO 15118
