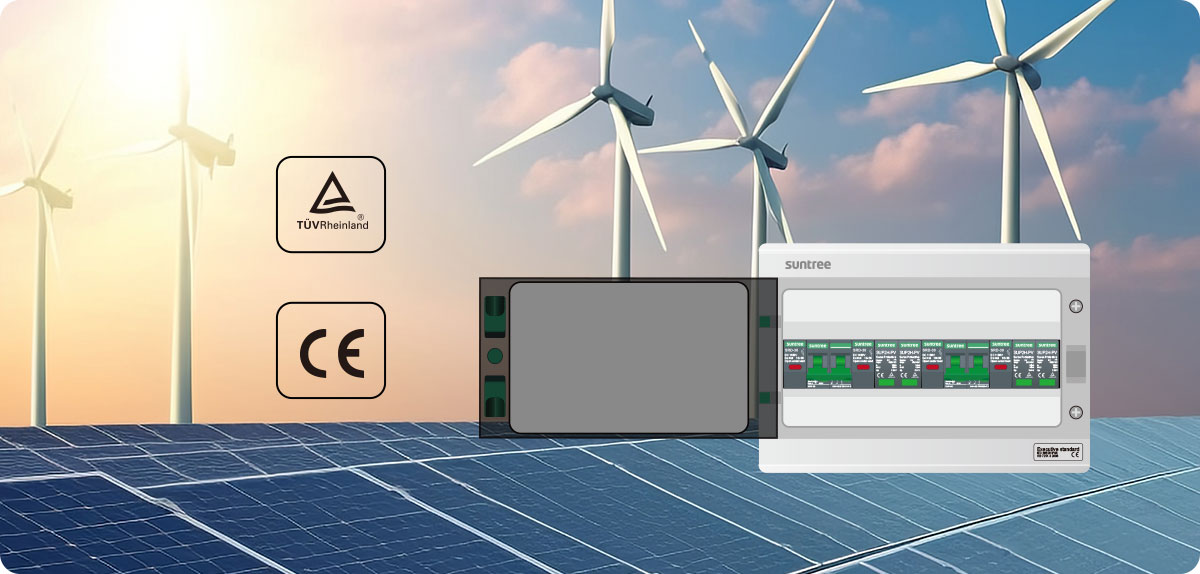

SHLX-PV2/2 DC Combiner Box DC 500V

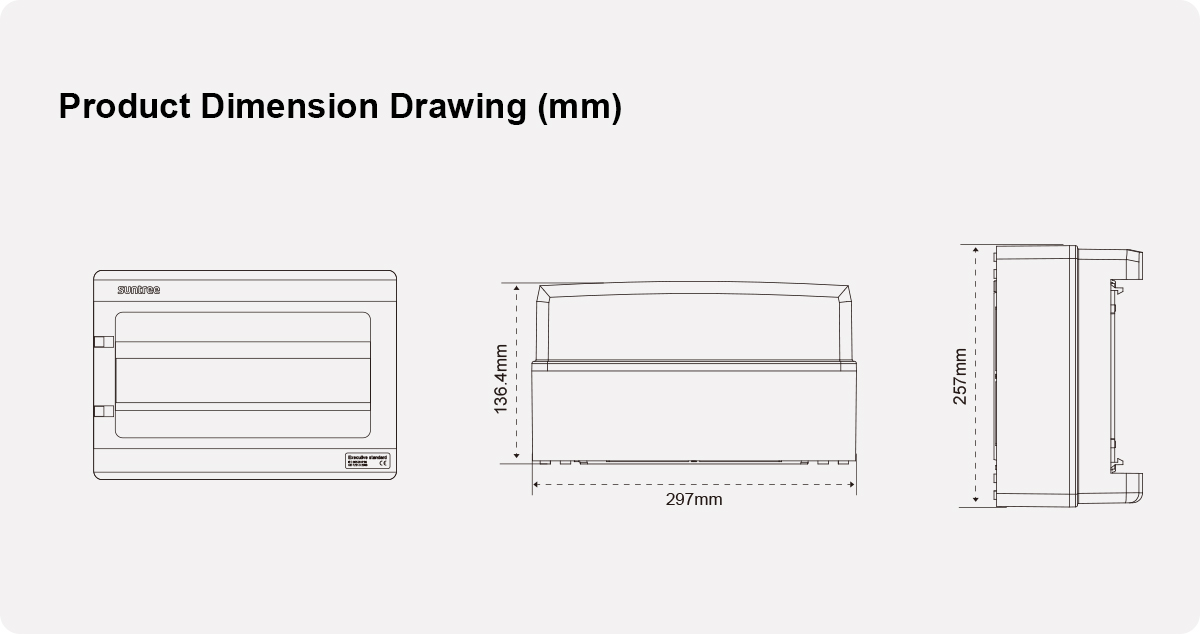

• Compact size, easy to install

• Comprehensive configuration, effectively protect the normal operation of the system

• Protection grade IP65, can be installed in the outdoor, effective waterproof

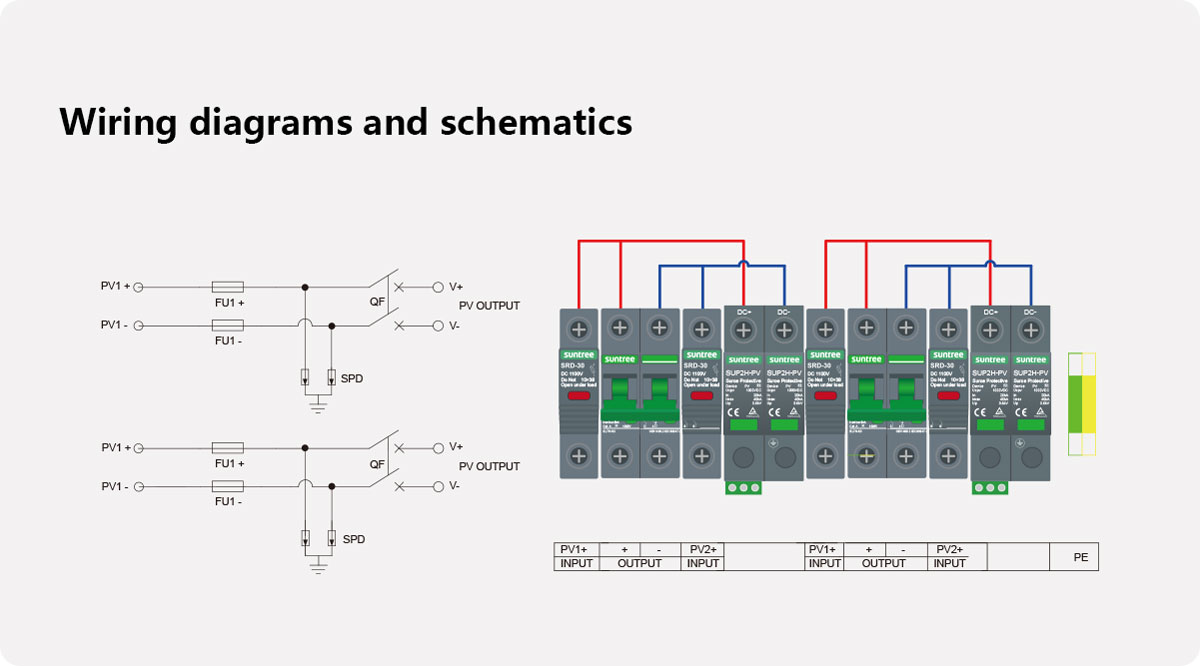

• Convenient wiring, factory components have been completed wiring

SHLX-PV2/2 DC Combiner Box Configuration

PRODUCT	PRODUCT MODEL	POLE	RATED OPERATIONAL VOLTAGE/UE (V)	RATED OPERATIONAL CURRENTAN (A)	QUANTITIES
DC FUSE	SRD-30	1P	1100V	6-30A	4
DC MCB	SM7-63	2P	500V	16-63A	2
DC SPD	SUP2H-PV	2P	500V	T2/20-40KA	2
