Combiner Box

SUNTREE has workd closely with solar system manufacturers and through coordinated neserch and development,has produced revolutionary new dc circurit breaker,dc isolator swithc,dc fuse which,combined with its range of surge protective devices,offer complete protection for PV systems

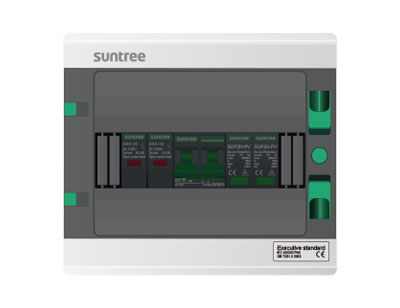

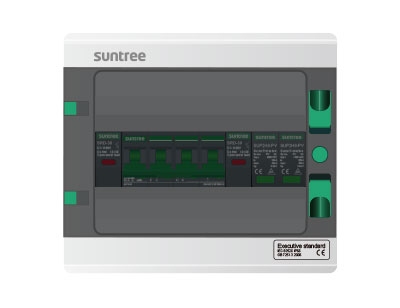

SHLX-PV1/1 DC combiner box

• Strong Adaptability
IP65 design, waterproof, anti dust and anti ultraviolet.
Strict test for high and low temperature, used widely.
The simple installation,the simplified system wiring, the convenient wiring
The box body is made of cold rolled steel and other metal materials

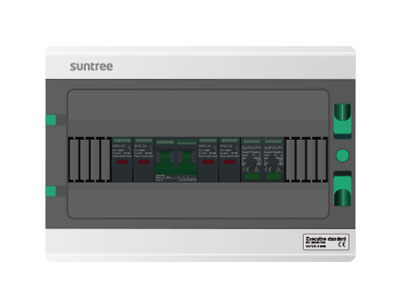

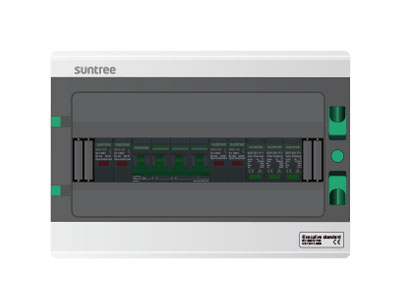

SHLX-PV2/1 DC combiner box

Box body is made of PVC engineering materials,
with test for fire retardant, temperature rise,
anti impact, anti ultraviolet,and other testing.
IP65 protection grade.

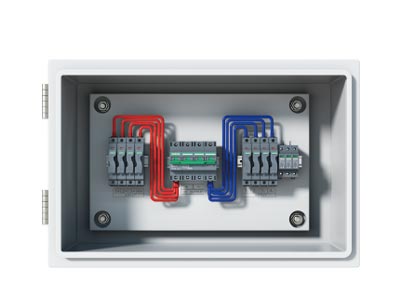

SHLX-PV4/1 DC combiner box

IP65 design, waterproof, anti dust and anti ultraviolet.
Strict test for high and low temperature, used widely.
The simple installation,the simplified system wiring, the convenient wiring
The box body is made of cold rolled steel and other metal materials

SHLX-PV12/1 DC combiner box

PV combiner box divided into two types: intelligent box and non-intelligent box.
Intelligent PV combiner box is equipped with monitoring unit, then detect input current of each string, d
etect inside temperature, detect lightning protection status,
detect circuit breaker status and summarize output voltage and so on.

SHLX-PV8/1 DC combiner box

• Strong Adaptability
IP65 design, waterproof, anti dust and anti ultraviolet.
Strict test for high and low temperature, used widely.
The simple installation,the simplified system wiring, the convenient wiring
The box body is made of cold rolled steel and other metal materials

SHLX-PV6/1 DC combiner box

It greatly simplify input wiring of DC power distribution cabinet and inverter.
Realize lightning protection, short circuit protection and grounding protection.
PV combiner box divided into two types: intelligent box and non-intelligent box.
Intelligent PV combiner box is equipped with monitoring unit

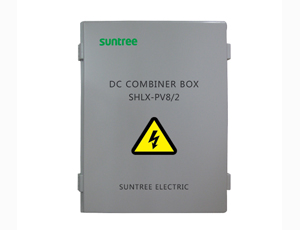

SHLX-PV8/2 DC combiner box

• Flexible configuration
Used for single crystal silicon solar modules,
polycrystalline silicon solar modules, thin film solar modules. C
urrent rating of the photovoltaic fuse, circuit breaker,
load isolation switch is modified

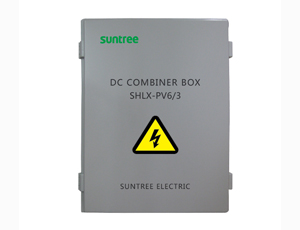

SHLX-PV6/3 DC combiner box

suitable for inverter (MAX input voltage DC1000V, 6 PV input channel, 3 output channel).
Box body is made of PVC engineering materials,
with test for fire retardant, temperature rise, anti impact,
anti ultraviolet,and other testing.
IP65 protection grade.

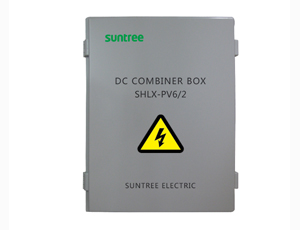

SHLX-PV6/2 DC combiner box

Design and configuration,strictly accordance with the
"Technical specification for photovoltaic junction equipment"
CGC/GF 037:2014. Provide users with a safe, brief,
beautiful and applicable photovoltaic system products.

SHLX-AC8/1 AC PV combiner box

• High reliability
With AC Surge Protection Device
With DC circuit breaker, rated voltage AC690V
• Flexible configuration
Used for AC output of 1-50kw inverter. Current rating of the photovoltaic fuse, circuit breaker is modified

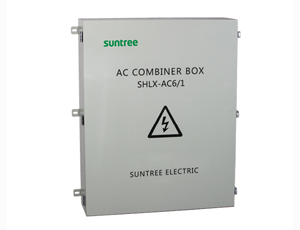

SHLX-AC6/1 AC PV combiner box

The combiner box greatly simplifies the connection between series inverter and AC power distribution cabinet or boost transformer.
Simple and clear linternal structure make reasonable wiring.
High reliability and simple maintenance. Outdoor wall mounted can adapt to the harsh environment.
In addition to the material and size, it can be customized according to user requirements.

SHLX-AC4/1 AC PV combiner box

• Strong adaptability
IP65 design, waterproof, anti dust and anti ultraviolet
Strict test for high and low temperature, used widely.
The simple installation, the simplified system wiring, the convenient Wiring
The box body is made of cold rolled steel and other metal materials

SHLX-Grid-Connected Box

• Protection rating IP65
• With short-circuit, over-voltage, under-voltage protection
• Automatically closing
• Surge protection
• Disconnect obliviously,Repair directly in box when repair power issue

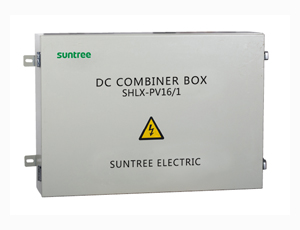

SHLX-PV16/1 DC combiner box

• Flexible configuration
Used for single crystal silicon solar modules,
polycrystalline silicon solar modules,
thin film solar modules. Current rating of the photovoltaic fuse,
circuit breaker, load isolation switch is modified

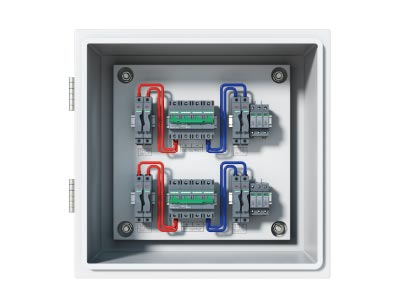

SHLX-PV4/2 DC combiner box

• High Reliability
With DC FUSE
With DC Surge Protection Device
With DC circuit breaker or DC load isolation switch
